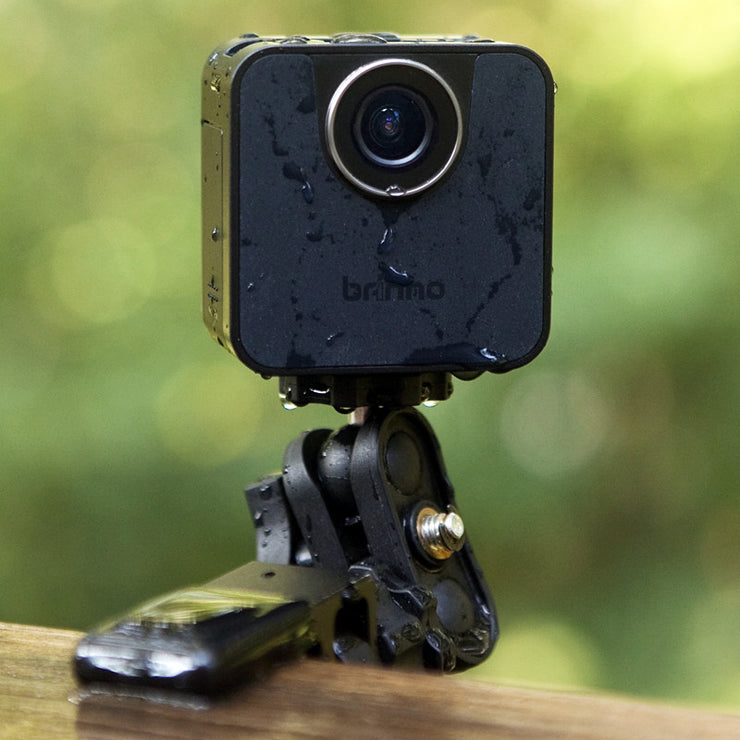

Brinno TLC 120 Time Lapse Camera

  • $209.00


The new Brinno TLC120 takes the best features from Brinno's proven line of time lapse cameras, packs these features into a small pocketable cube and adds wi-fi, app control, weather resistance, instant sharing, a rechargeable battery and more. The TLC120 is the first in an exciting new generation of Brinno cameras. Perfect for travel, education, research, remodeling projects and daily fun.

  • High Dynamic Range (HDR) sensor
  • 19mm wide angle lens
  • f/2.0 aspherical lens
  • Outputs 1280 x 720 timelapse videos
  • Time Interval: variable, (ASAP) 1-4 captures per second to once every 24 hours
  • Android and iOS app control
  • 802.11b/g/n Wi-Fi for file transfer/preview, Bluetooth 4.0 LE for app control
  • IPX4 splashproof & weather tesistant
  • Rechargeable Lithium-Ion Polymer battery
  • Includes 8GB SDHC Memory Card, Micro USB-USB cable and our 3D printed cap

Special Note: We do not recommend the TLC120 for night or low light shooting. We also don't recommend this camera for long term projects (1 week+). For long term use and great night capabilities please look at the Brinno TLC200 Pro camera

TLC120
Product name Wi-Fi TimeLapse Camera TLC120
Model No. TLC120 (orange) TLC120A-BK (black)
Splashproof IPX4
Image Sensor
  • 1/3" HDR Image Sensor
  • Dynamic Range 115 db
  • Pixel Size 4.2μm
  • Sensitivity3650mV/lux-sec
Lens
  • Low Distortion Fixed Aspherical Lens
  • Aperture: F2.0
  • Field of View: 112°
  • Focal Length 19 mm (35mm equivalent)
Video Format AVI (1280x720 Resolution)
Shooting Setting
  • Scene: Daylight, Twilight, Night, Moon, Star
  • White Balance: Auto, Day, Shade, Cloudy, Fluorescent Light (Cool), Fluorescent Light (Warm), Tungsten Light
  • Custom Image: Exposure, Saturation, Contrast, Sharpness
Memory Storage SD / SDHC Card (Supported up to 32 GB)
Power Source Li-Po Rechargeable Battery (1500mAh)
DC IN: 5V (Micro USB Connector)
Battery Life 1.5 days with a 2 second time interval
10 days with a 5 minute time interval
Wireless Wi-Fi (802.11 b/g/n)
Bluetooth 4.0 (BLE)
Brinno App Android 4.4 / iOS 7.0 above
Camera Size 60 x 60 x 33.5 mm
Camera Weight 101 g
Color Black / Orange
Package contents
  • HDR Time Lapse Camera (TLC120)
  • 8GB SD card
  • Micro USB cable
  • Quick guide
  • 3D printed lens cap

Camera Shutter Mode

(Start time lapse recording through camera shutter button) / Scene: Daylight

Time Interval Frames Days
1 sec 66375 1
2 sec 64130 1
5 sec 58224 3
10 sec 50475 6
20 sec 39865 9
30 sec 32940 11
1 min 21656 15
5 min 5789 20
10 min 3022 21
1 hr 523 22
4 hr 131 22
24 hr 22 22

App Shutter Mode

(Using the Brinno Camera APP with Brinno TLC120 together for the Time Lapse shooting) / Scene: Daylight

Time Interval Frames Days
1 sec 66375 1
2 sec 62471 1
5 sec 53100 3
10 sec 42480 5
20 sec 30343 7
30 sec 23600 8
1 min 14160 10
5 min 3371 12
10 min 1727 12
1 hr 294 12
4 hr 74 12
24 hr 12 12
Select 720 using the gear on the player for the best quality.

Questions & Answers

Ask a Question
  • What are the Bluetooth and Wi-Fi functions?

    With the TLC120 app, Bluetooth controls the camera functions and turns on the Wi-Fi connection. Wi-Fi allows you to preview the camera view and download videos or photos via the Android or iOS app.

  • Can I connect to the TLC120 from a remote location?

    You must be within Bluetooth range of the camera, Bluetooth controls the camera functions and turns on the camera Wi-Fi, which allows you to preview the camera view and download videos or photos via the Android or iOS app. You could not be in a different building or city to access the camera.

  • Can I download from the camera to a computer or have the captures sent somewhere?

    You must be within Bluetooth range of the camera, Bluetooth controls the camera functions and turns on the camera Wi-Fi.  You can only download via the TLC120 App which requires an Android or iOS device. Alternatively, you can download from the SD card with a card reader or computer's SD port.

  • Can I control the camera remotely?

    You must be within Bluetooth range of the camera as Bluetooth controls the camera functions. Wi-fi allows previewing, downloading and sharing via the camera app. The Bluetooth range varies depending on the environment but the distance is relatively short (30-40').
